SZX 400mm 2X Extender Kit EF-M Mount

SZX 400mm 2X Extender Kit EF-M Mount

Regular price $369.00 USD
Regular price Sale price $369.00 USD
Sale Sold out
Shipping calculated at checkout.
Mount Adapter
View full details
Description

2X Extender Overview

Tokina introduces the SZX 400mm & 2X Extender KIT that allows the photographer to shoot subjects far away and out of range of the SZX 400mm.

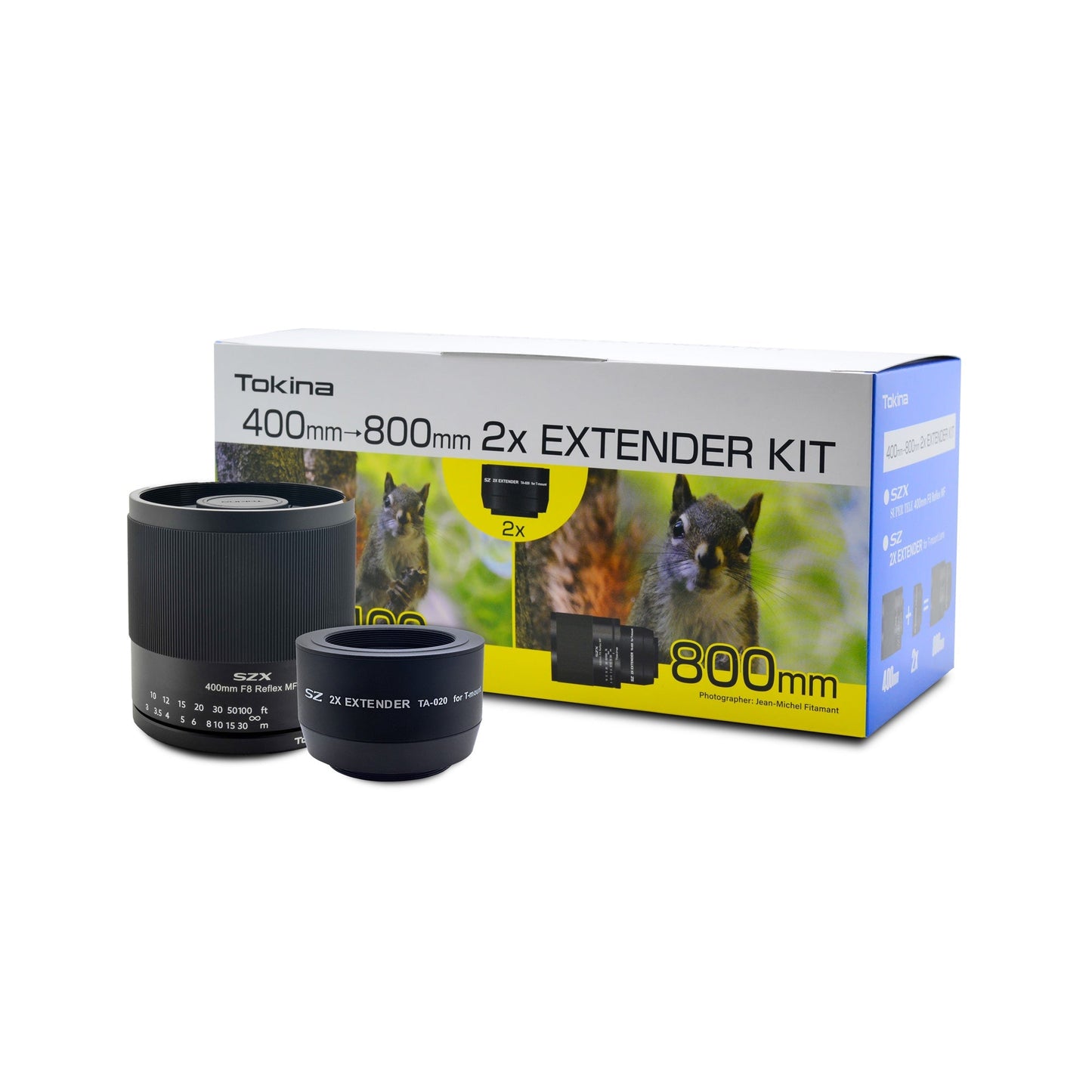

The kit includes:

  • Tokina SZX SUPER TELE 400mm F8 Reflex MF lens
  • 2X Extender TA-020 for T-mount

The Tokina 2X Extender TA-020 for T-mount is a universal optical tele-converter that extends the focal length of the lens 2 times. Thus, the focal length of the SZX SUPER TELE 400mm F8 Reflex MF turns into 800mm. 2X Extender TA-020 adopts T-mount standard and comes between the lens and mount adapter. Recommended for long distance shooting when the 400mm focal length is not enough to reach the desired magnification.

Features

  • Compact and lightweight optical construction
  • 2 times magnification
  • Budget saving solution for those who need more powerful magnification
  • Compatibility with 6 camera mounts including 4 mounts for mirrorless cameras

SZX 400mm Lens Overview

Tokina SZX SUPER TELE 400mm F8 Reflex MF is a 400mm super tele lens that adopts catadioptric type optical design with a constant f/8 aperture. The lens offers a compact alternative to standard telephoto lenses as more photographers are looking for easy-to-carry gear. 400mm f/8 reflex MF is designed keeping in mind active travel photographers seeking for outdoor landscape, wild nature or birds by providing compact and lightweight lens to be rediscovered in the new era of also compact but high-tech mirrorless cameras.


Optical Performance

Long 400mm focal length of Tokina SZX SUPER TELE 400mm F8 Reflex MF while being such a compact and lightweight is realized thanks to catadioptric optical design.

Mirror lenses are tele photo lenses that incorporate a combination of 3 lenses silvered on the outside of the glass to reflect light back and forth between the ends of the lens. This structure folds the light cutting the tube length in half. In this way the construction makes the physical size of the lens around a third of the size of a conventional lens and allows a lightweight body, because the mirrors are much lighter than the optical glass.

Lens elements inside the lens are coated with multi-layer anti-reflection coating for effective light intake and as a result, for increasing shutter speed in low light conditions.Mirrored surfaces of the lens elements incorporate high-reflectivity silvered coating and a protective antioxidant layer on the back side for a longer product lifetime.

Compact and Lightweight

The Tokina SZX SUPER TELE 400mm F8 Reflex MF is suitable for travel photography since the lens is compact and lightweight, and yet will help you to capture far objects that cannot be reached by standard zoom lenses.

Weighing just 340g (without mount adapter) this lens can be easily packed and carried inside a pocket or small bag, suitable for travel photographers seek ing lightweight gear.ds

Macro Option

The field of view is 6°8' (by frame diagonal) and the minimum focusing distance is 1.15 meters. It gives magnification 1:2.5 to capture an object with size 6x9cm on full frame. These properties help the photographer avoid shadows while shooting close up images, and open up creative macro possibilities.

Specific Bokeh

Optical construction of the lens creates specific donut-shaped and super smooth bokeh that finds support among many artistic photographers.

Focus

Tokina SZX SUPER TELE 400mm F8 Reflex MF is equipped with wide and excellent grip focus ring that provides smooth rotation range 270°. Precise focusing could not be more easy. Thanks to high quality processed metal parts and assembling processes, the focus ring rotates smoothly, even in low temperature environments, preventing dust from being sucked inside the lens.

Super Compression

Thanks to its long focal length Tokina SZX SUPER TELE 400mm F8 Reflex MF can create images with a super compression effect, when the background looks close and enlarged compared to the main object. This effect adds to the image enchanting atmosphere.

Versatile Mount System

Tokina SZX SUPER TELE 400mm F8 Reflex MF adopts a T-mount standard (pitch 0.75mm, thread 42mm), that allows this lens to be attached to any camera by using mount adapters.

Specifications

2X Extender Specifications

Series SZX
Mount pitch .75mm, thread 42mm
Color Black
Magnification 2x
Exposure Correction 2 stops
Coating Fully multi-coated
Weight 115g
Dimensions 41mm x 60mm



SZX 400mm F/8 Lens Construction:

Series SZX
Mount T Mount (Lens Only)
Country of Origin Japan
Focal Length 400mm
Maximum Aperture f/8
Minimum Aperture f/8
Automatic Aperture Yes
Angle of View 6° 8'
Minimum Focus Distance 45.3 inches
Macro Ratio 1 : 2.5
Focusing Mode Manual
Coating Multi-Coating
Construction (E/G) catadioptric
Lens Hood BH 673
Dimensions 74mm x 77mm
Weight 0.8 lbs
Warranty 3 year exclusive USA



Support

WARRANTY REPAIRS

For warranty repairs, please send the lens to the following address:

Kenko Tokina USA
7642 Woodwind Drive
Huntington Beach, CA 92647
ATTN: Repair Dept.

Please include any and all contact information (how to get in touch with you – phone number, email address, return shipping address), a note explaining the problem, along with any and all warranty information (warranty card and receipt from an authorized US Tokina dealer).

NON-WARRANTY REPAIRS

Please send your lens to the following address:

Kenko Tokina USA
7642 Woodwind Drive
Huntington Beach, CA 92647
ATTN: Repair Dept.

Include a note explaining the problem, along with any and all contact information (how to get in touch with you – phone number, email address, return shipping address).
We will contact you with a repair estimate before any work has begun. If the estimate is more money than you are willing to spend, simply refuse the estimate, and we will return your lens to you at no additional cost.

If your lens is 10 years or older, please contact us to determine whether there are still parts and service available for your lens.
